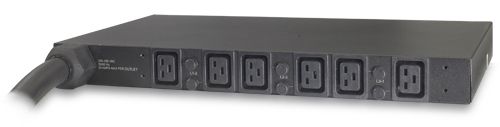

Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
AP7516
APC Basic Rack PDU , Input: 208V 3PH , Input Connections: Compatible With Hubbell CS8365C , Cord Length: 8 feet ( 2.44 meters ) , Output: 208V , Output Connections: IEC 320 C19
Includes: Installation Guide
Features
Low Cost Power Distribution
Output
Nominal Output Voltage
208V
Maximum Total Current Draw per Phase
40A
Input
Nominal Input Voltage
208V 3PH
Input Frequency
47 - 63 Hz
Input Connections
| Compatible With Hubbell CS8365C |
|
Cord Length
8 feet ( 2.44 meters)
Maximum Input Current per phase
40A
Physical
Net Weight
17.55 lbs. ( 7.98 kg)
Maximum Height
1.72 inches ( 44 mm)
Maximum Width
17.20 inches (437 mm)
Maximum depth
10.00 inches (254 mm)
Shipping Weight
22.20 lbs. ( 10.09 kg)
Shipping Height
9.50 inches (241 mm)
Shipping Width
22.00 inches (559 mm)
Shipping Depth
19.75 inches (502 mm)
Environmental
Operating Environment
23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Conformance
Regulatory Approvals
cUL Listed,CSA C22.2 No. 60950-1-03,UL 60950-1,UL Listed
Standard Warranty
2 years repair or replace
Design |
|---|
| Produktens färg | Svart | Anslutningar |
|---|
| Anslutningsdetaljer ingång | Hubbell CS8365C | | Anslutningsdetaljer utgång | (6) IEC 320 C19 | Egenskaper |
|---|
| Kabellängd | 2,44 m | Strömtillförsel |
|---|
| Ingångsspänning (Volt) | 208 V | | Växelström Frekvens | 50 - 60 hz | | Maximal strömförbrukning per fas | 50 A | | Maximal sammanlagd strömförbrukning per fas | 40 A | Miljökrav |
|---|
| Temperatur vid drift | -5 - 45 ° C | | Temperaturintervall (förvaring) | -25 - 65 ° C | | Intervall för relativ operativ luftfuktighet | 5 - 95% | | Fuktighet (förvaring) | 5 - 95% | Vikt & dimension |
|---|
| Bredd | 437 mm | | Djup | 254 mm | | Höjd | 44 mm | | Vikt | 7,98 kg |
|
