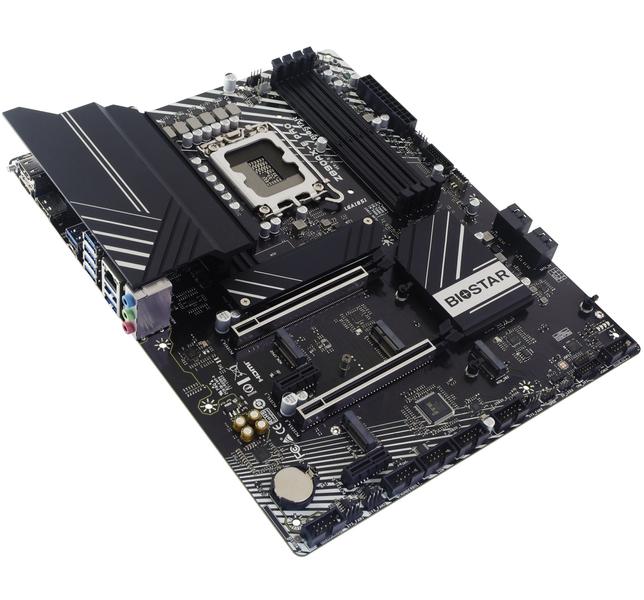

Z890AX-E PRO
Features:
- Supports Intel Core Ultra 9/7/5 Processor
- Intel Z890 single chip architecture
- Supports 4-DIMM DDR5 up to 256 GB Memory
- Supports PCIe 5.0 M.2
- Supports Dual HDMI® Ports & a Display Port
- Supports 2.5 GbE LAN
- Supports USB 3.2 Gen2 Type C
- Supports WiFi 7 & 6E module (No WiFi card included)
Specifications:
Chipset
CPU SUPPORT - Support for Intel Core™ Ultra 9 / 7 / 5 processors in the LGA1851 package
MEMORY - Supports Dual Channel DDR5 - 9066+(OC) MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Memory
- 4 x DDR5 DIMM Memory Slot, Max. Supports up to 256 GB Memory
- Support Intel® Extreme Memory Profile (XMP) memory modules
INTEGRATED VIDEO - By CPU model
- Supports DX12
- Supports HDCP
STORAGE - Total supports 4 x M.2 socket and 4 x SATA III (6Gb/s) ports
- Intel Core Ultra Processors
- 1 x M.2 (M Key) Socket (M2M_CPU_1):
- Supports M.2 Type 2280 SSD module
- Supports PCIe 5.0 x4 (128Gb/s) - NVMe SSD
- 1 x M.2 (M Key) Socket (M2M_CPU_2):
- Supports M.2 Type 2280 SSD module
- Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
- Intel Z890 Chipset
- 1 x M.2 (M Key) Socket (M2M_SB_1):
- Supports M.2 Type 2280 SSD module
- Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
- 1 x M.2 (M Key) Socket (M2M_SB_2):
- Supports M.2 Type 2280 SSD module
- Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD
- 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology
LAN - Realtek RTL8125D
- 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC - Realtek ALC1220
- 7.1 Channels, High Definition Audio
USB - 2 x USB 3.2 (Gen2) Type-C ports (1 on rear I/O and 1 via internal header)
- 9 x USB 3.2 (Gen2) ports (7 on rear I/O and 2 via internal header)
- 4 x USB 2.0 ports (4 via internal header)
EXPANSION SLOT - Intel Core Ultra Processors 1 x PCIe 5.0 x16 Slot (x16 mode)
- Intel Z890 Chipset
- 1 x PCIe 4.0 x16 Slot (x4 mode)
- 2 x PCIe 3.0 x1 Slot (x1 mode)
REAR I/O - 2 x WIFI Antenna Ports
- 1 x HDMI® Port (HDMI®2.1)
- 1 x HDMI® Port (HDMI®1.4b)
- 1 x DP Port (DP1.2)
- 1 x USB 3.2 (Gen2) Type-C Port
- 7 x USB 3.2 (Gen2) Ports
- 1 x 2.5 Gigabit LAN port
- 3 x Audio Jack
- 1 x SMART BIOS UPDATE Button
- 1 x SMART BIOS USB Port
INTERNAL I/O - 4 x SATA III Connector (6Gb/s)
- 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® GEN2 CNVi
- 1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) Type-C ports)
- 1 x USB 3.2 (Gen2) Header (each header supports 2 USB 3.2 (Gen2) ports)
- 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
- 2 x 8-Pin Power Connector
- 1 x 24-Pin Power Connector
- 1 x CPU Fan Connector
- 1 x CPU water cooling connector (CPU_OPT)
- 4 x System Fan Connector
- 1 x Front Panel Header
- 1 x Front Audio Header
- 1 x Speaker Header
- 1 x Clear CMOS Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Thunderbolt Header
- 4 x LED Header (5V)
- 1 x LED Header (12V)
RAID - Supports RAID 0, 1, 5, 10 for SATA storage devices
- Supports RAID 0, 1, 5, 10 for M.2 NVMe storage devices
DIMENSION - ATX Form Factor Dimension: 24.4cm x 30.5cm ( W x L )
OS SUPPORT - Supports Windows 10(64bit) / Windows 11(64bit)
ACCESSORIES - 2 x SATA Cable
- 1 x I/O Shield
- 1 x Cable for WiFi Antenna (Wi-Fi accessories are optional)
|
