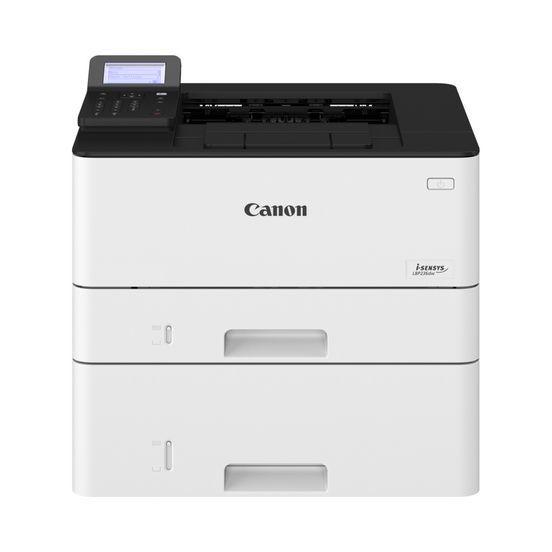

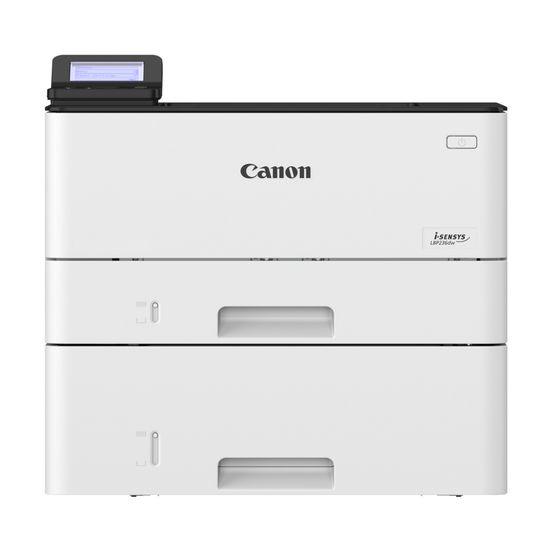

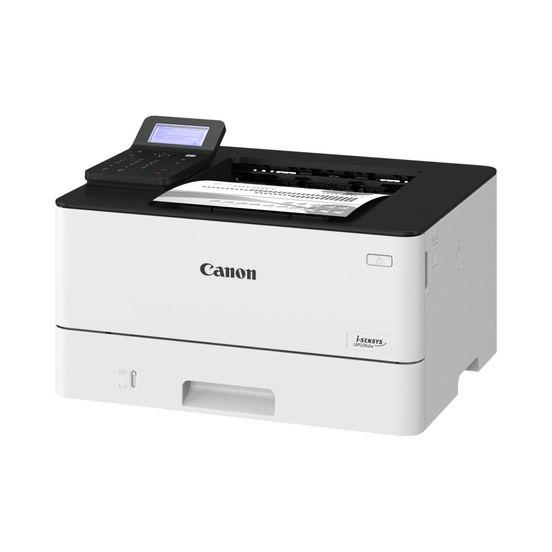

i-SENSYS LBP236dw

• Boost workflow efficiency
  • 33-38ppm A4 black and white print speeds in the Canon i-SENSYS LBP230 Series deliver maximum productivity, with double-sided printing as standard.
• Protect documents and devices
  • Robust and reliable security protects sensitive documents as well as your network, while Secure PIN functionality prevents sensitive documents being automatically released.
• Stay connected wherever you are
  • Mobile connectivity means you can conveniently print from wherever you are – either through the Canon PRINT Business app, AirPrint (iOS) or Mopria (Android).

• Machine Type Black & white laser single function
• Available Functions Print

• Print Speed
  • Single sided: Up to 38 ppm (A4), Up to 63.1 ppm (A5-Landscape)
  • Double sided: Up to 31.9 ipm (A4)
• Printing Method Monochrome laser beam printing
• Print Resolution Up to 1200 x 1200 dpi
• Warm-up Time Approx. 14 seconds or less from power on
• First-Print-Out Time Approx. 5.5 seconds or less
• Printer Languages UFRII, PCL 5e, PCL6, Adobe® PostScript
• Fonts 45 PCL fonts, 136 PS fonts
• Print Margins 5 mm-top, bottom, left and right
• Advanced Printing Features
  • Secure Print
  • iOS: AirPrint, Canon PRINT Business app
  • Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

• Paper Input (Standard)
  • 250-sheet cassette
  • 100-sheet multi-purpose tray
• Paper Input (Option) 550-sheet cassette
• Maximum Paper Input Capacity Up to 900 sheet
• Paper Output 150-sheet
• Media Types Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  • Cassette: A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.
  • Multi-purpose tray: A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
• Media Weights
  • Cassette (standard and optional): 60 to 120 g/m²
  • Multi-purpose tray : 60 to 163 g/m²
• Double Sided Printing
  • A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
  • Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
  • 60 to 120 g/m²

• Interface Type USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  • Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
  • Mac OS X version 10.11 & up
  • Linux
• Network Protocol
  • Print: TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  • Management: SNMPv1, SNMPv3 (IPv4, IPv6)
  • Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  • Infrastructure Mode: WEP (64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK (TKIP/AES)
  • Access Point Mode: WPA2-PSK (AES)
• Software and Printer Management
  • Remote User Interface (RUI),
  • Department ID Management,
  • Toner Status Tool,
  • iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  • eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

• Recommended Monthly Print Volume 750 - 4,000 pages per month
• Duty Cycle 80,000 pages
• Processor Speed 800MHz x 2
• Memory 1GB
• Control Panel 5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H) 401 mm x 373 mm x 250 mm
• Weight Approx. 9.5 Kg
• Operating Environment
  • Temperature: 10 to 30ºC (50 to 86ºF)
  • Humidity 20 to 80% RH (no condensation)
• Power Source 220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption
  • Maximum: Approx. 1,330 W
  • Standby: Approx. 9 W
  • Sleep mode: Approx. 0.9 W
  • Typical Electricity Consumption (TEC): 0.30 kWh/week (230V)

• Sound Pressure: Active: 54 dB, Standby: Inaudible
• Sound Power: Active: 68 dB, Standby: Inaudible

• Cartridge 057 (3,100 pages)
• Cartridge 057H (10,000 pages)

• Cassette Feeding Module-AH1
