GPS-400A8

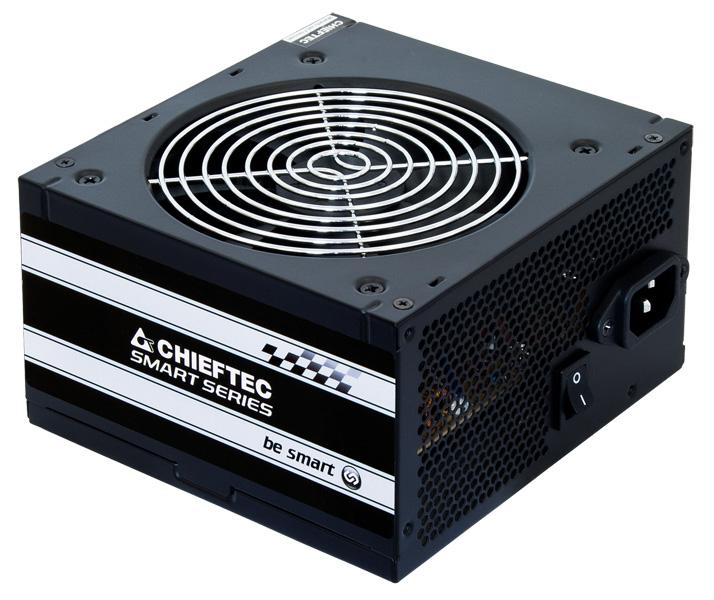

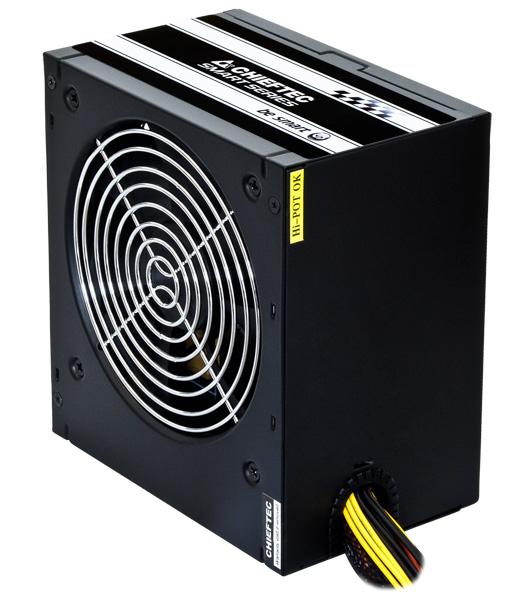

This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the GPS-400A8 fulfills the requirement of green power at an attractive price.
Specifications:
| Specification: |
ATX 12V 2.3 |
|
| Form factor: |
PS II |
|
| Dimension (DxWxH): |
140 mm x 150 mm x 87 mm |
|
| PFC: |
Active PFC (0,9) (only 230V) |
|
| Fan: |
120mm silent fan |
|
| Security: |
- UVP (Undervoltage protection)
- OVP (Overvoltage protection)
- SCP (Short-circuit protection)
- OPP (Overload protection)
- OCP (Overcurrent protection)
- OTP (Over Temperature Protection)
- AFC (Automatic Fanspeed Control)
- MTBF (mean time between failure): >100.000h
|
|
| Certificates: |
|
|
| Warranty: |
|
Performance
| AC Input: |
230V / 4A |
|
| Frequency: |
47-63 Hz |
|
| +5V: |
18A |
|
| +3,3V: |
22A |
|
| +5V & +3,3V combined: |
120W |
|
| +12V 1: |
18A |
|
| +12V 2: |
17A |
|
| +12V 1 & +12V 2 combined: |
336W |
|
| +12V 3: |
N/A |
|
| +12V 4: |
N/A |
|
| +12V 3 & +12V 4 combined: |
N/A |
|
| P.F.: |
>0,9 |
|
| -12V: |
0,3A / 3,6W |
|
| +5VSB: |
2,5A / 12,5W |
|
| Maximum Load: |
400W |
|
Connectors
Native cable:
|
20+4PIN: |
|
|
===500mm===[20+4PIN] |
|
SATA: |
|
|
===500mm===[SATA]===150mm===[SATA]===150mm===[SATA] |
|
Molex/Floppy: |
|
|
===500mm===[Molex]===150mm===[Molex]===150mm===[Floppy] |
|
4PIN 12V: |
|
|
===500mm===[4PIN 12V] |
|
|
8PIN PCIe (6+2): |
|
|
===500mm===[PCIe] |
|
Strömtillförsel |
|---|
| Total effekt | 400 W | | AC-inspänning | 230 V | | Växelström Frekvens | 47 - 63 hz | | Ingående ström | 4 A | | Power Factor Correction (PFC) typ | Aktiv | | Kombinerad effekt (+3,3 V) | 120 W | | Kombinerad effekt (+5 V) | 120 W | | Kombinerad effekt (-12V) | 3,6 W | | Kombinerad effekt (+5 VSB) | 12,5 W | | Max utström (+3,3 V) | 22 A | | Max utström (+12 V1) | 18 A | | Max utström (+12 V2) | 17 A | | Max utström (+5 V) | 18 A | | Max utström (-12V) | 0,3 A | | Max utström (+5 VSB) | 3 A | | Effekt skyddsfunktioner | Överspänning, Överbelastning, Kortslutning, Underspänning | Anslutningar |
|---|
| Moderkort strömkontakt | 20+4 pin ATX | | Antalet SATA strömkontakter | 3 | | Periferiska (Molex) strömkontakter (4-pin) | 2 | | PCI Express strömkontakter (6 +2 pin) | 1 | | CPU P4-kontakt (4-stifts) | 1 | | Typ av kablage | Icke-Modulär | Prestanda |
|---|
| Ändamål | PC | | Strömförsörjningsenhet formfaktor | ATX | | 80 plus-certifiering | Nej | | ATX-version | 2.3 | Design |
|---|
| Produktens färg | Svart | | Fläktdiameter | 12 cm | Vikt & dimension |
|---|
| Bredd | 150 mm | | Djup | 140 mm | | Höjd | 87 mm | Tekniska detaljer |
|---|
| Compliance certificates | RoHS |
|
