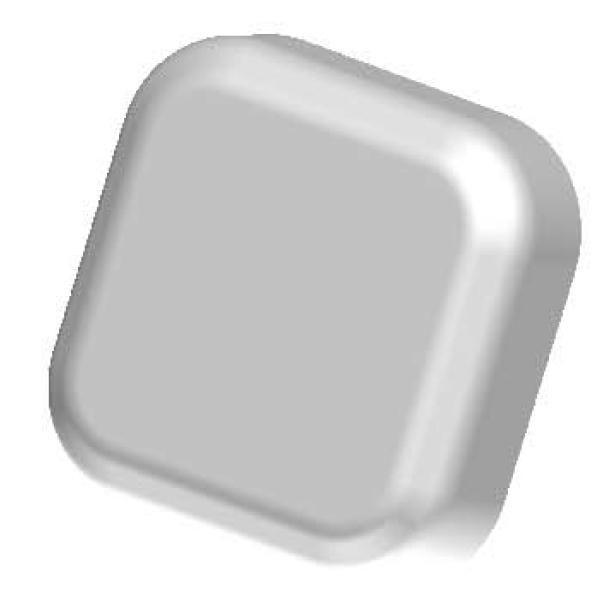

Cisco Multiband Panel Outdoor 4G Antenna
ANT-4G-PNL-OUT-N
The dual-port Multiband Panel Outdoor 4G antenna is designed to cover cellular 4G bands and is supported on LTE700/Cellular/PCS/AWS/MDS, global GSM900/GSM1800/UMTS/LTE2600, and WiMAX 2300/2500 bands, and supports the Cisco CGR 2010, 1240, and the 1120 routers. This document provides the antenna specifications and mounting instructions.
Features:
- Supports 3G and 4G solutions
- Supports bands
- Wall mount, mast mount
- Indoor and outdoors
- Dual type N female connector
Specifications:
RF Specifications
|
Frequency |
•698 to 960MHz
•1710 to 2700 MHz |
|
VSWR |
2.0:1 Maximum |
|
Gain |
•5.5 to 10.5 dBi (698 to 960 MHz)
•6.5 to 9.0 dBi (1710 to 2700 MHz) |
|
3 dB beamwidth (vertical plane) |
•55 to 70 degrees—698 to 960 MHz
•53 to 98 degrees—1710 to 2200 MHz
•60 to 70 degrees—2200 to 2500 MHz
•55 to 70 degrees—2500 to 2700 MHz |
|
3 dB beamwidth (horizontal plane) |
•55 to 70 degrees—698 to 960 MHz
•50 to 90 degrees—1710 to 2200 MHz |
|
F/B ratio |
•> 15 dB, typical 20 dB—698 to 960 MHz
•> 17 dB, typical 23 dB—1700 to 2700 MHz |
|
Isolation |
•> 30 dB |
|
Polarization |
Slant +/- 45 degrees |
|
Nominal impedance |
50 ohms |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Mount style |
Wall or mast mount |
|
Environment |
Outdoor |
|
Connector |
Dual type N female (direct connect or dual 12 in (30 cm)) |
|
Antenna length (height) |
11.6" (2.95 cm) |
|
Temperature Range (Operating) |
-22 to 158-degrees F (-30 to 70-degrees C) |
|
Storage temperature |
-40 to +85° C |
|
Wind rating |
160 Km/H |
|
IP rating |
IP 54 |
|
Radome |
Polycarbonate, UV resistant, white |
|
Material substance compliance |
ROHS compliant |
|
