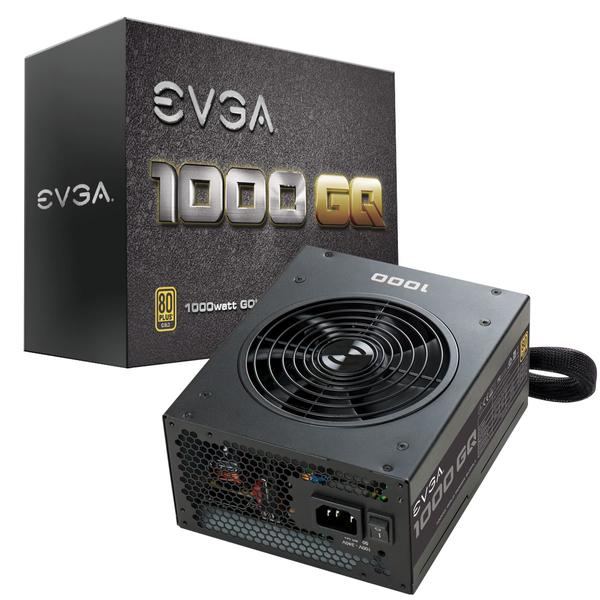

Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode) Introducing the latest in the EVGA power supply lineup; the GQ series. These power supplies take some of the best features from EVGA�s award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. These new power supplies are 80 Plus Gold rated and offer an outstanding 5 Year Warranty that's backed by world class EVGA support.
Strömtillförsel |
|---|
| Total effekt | 1000 W | | AC-inspänning | 100 - 240 V | | Växelström Frekvens | 50 - 60 hz | | Ström | 16 A | | Power Factor Correction (PFC) typ | Aktiv | | Kombinerad effekt (+3,3 V) | 120 W | | Kombinerad effekt (+12 V) | 999,6 W | | Kombinerad effekt (+5 V) | 120 W | | Kombinerad effekt (-12V) | 6 W | | Kombinerad effekt (+5 VSB) | 15 W | | Max utström (+3,3 V) | 24 A | | Max utström (+12 V) | 83,3 A | | Max utström (+5 V) | 24 A | | Max utström (-12V) | 0,5 A | | Max utström (+5 VSB) | 3 A | Anslutningar |
|---|
| Moderkort strömkontakt | 24-pin ATX | | Längd, moderkortets strömförsörjningskabel | 60 cm | | Antalet SATA strömkontakter | 12 | | SATA-nätkabelns längd | 550,650,750 mm | | Peripheral (Molex) strömkontakter (4-pin) | 3 | | Tillbehörsnätkabelns (Molex) längd | 550,650,750 mm | | PCI Express strömkontakter (6 +2 pin) | 10 | | PCI Express-nätkabelns längd | 65 cm | | CPU strömkontakt (4 +4 pin) | Ja | | CPU-strömkabelns längd | 65 cm | | ATX strömkontakt (24-pin) | Ja | | Anslutning för diskettenhet | Ja | | Diskettenhetens kabellängd | 10 cm | | Typ av kablage | Semimodulär | Prestanda |
|---|
| Ändamål | PC | | Strömförsörjningsenhet formfaktor | ATX | | 80 plus-certifiering | 80 PLUS Gold | | Medeltid mellan fel (MTBF) | 100000 h | | RoHS-efterlevnad | Ja | | Certifiering | TUV, CB, CE, FCC, RCM, cTUVus, WEEE | Design |
|---|
| Produktens färg | Svart | | fläktdiameter | 13,5 cm | Miljökrav |
|---|
| Temperatur vid drift | 0 - 50 ° C | Vikt & dimension |
|---|
| Bredd | 150 mm | | Djup | 180 mm | | Höjd | 85 mm | | Vikt | 3,17 kg |
|
