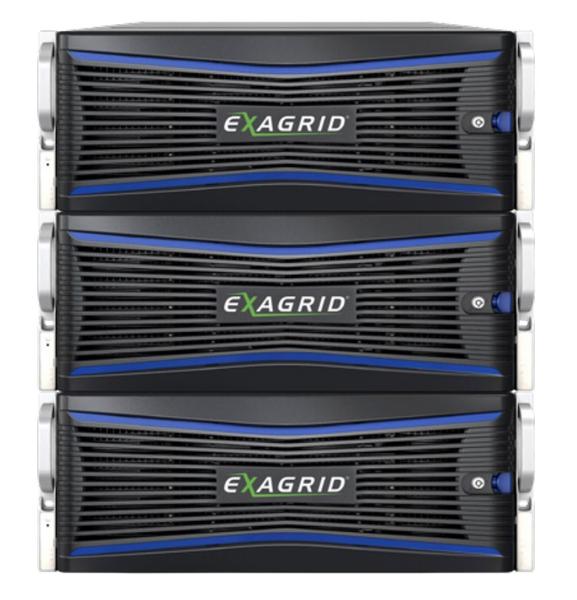

ExaGrid EX84
Features:
- Fastest backups and shortest backup windows with optimal recovery point at the disaster recovery site
- Fastest full system restore (from fully hydrated backup copy on disk)
- Boot a VM in minutes versus hours
- Fixed-length backup window as data grows
- Non-networking-facing tier with delayed deletes and immutable data objects in order to recover from a security event such as a ransomware attack
- Integrations with backup application scale out features
- Automatic load balancing and global deduplication
- Seamless scalability as data grows with no forklift upgrades
- No obsolescence as any age and any size appliance can be mixed and matched in a single system
- Protected data at rest with 256-bit AES encryption (encrypted models only); data is encrypted on the disk storage using FIPS 140-2 Validated
- Self-Encrypting Drives (SEDs)
Specifications:
Chassis
Full Backup
Disks
Disk Size
Memory
CPUs / Cores
- 1 CPU
- 12 hyper-threaded cores
NIC Ports
- Two 1GbE; two optional 10GbE, 25GbE, or 40GbE
Backup Applications, Utilities, and Methods
- Acronis Backup & Recovery
- Arcserve Backup, D2D, UDP
- Bacula Systems
- BridgeHead
- Commvault
- Dell EMC NetWorker
- HYCU
- IBM TSM (Spectrum Protect)
- Idera SQL Safe
- Micro Focus Data Protector
- Quest LiteSpeed, NetVault
- Quest vRanger
- Red Gate SQL Backup
- StorageCraft ShadowProtect
- Veeam Backup & Replication
- Veritas Backup Exec
- Veritas NetBackup
- Veritas System Recovery
- Zerto Offsite Backup
- POSIX-compliant TAR files
- Oracle RMAN
- SQL Dumps
Site Configurations
- Scalable from 6TB to 2.7PB full backup (24TB to 6.14PB raw) with 32 servers in a single system
- Hub-and-spoke architecture
- Mix and match different size/age appliance models
- Multi-hop for a tertiary copy
- ExaGrid sites (one hub and up to 15 spokes)
- Standard IP WAN connection between sites
- WAN encryption for secure data transfer
- Bandwidth throttling for WAN efficiency
Regulatory Approvals
- UL/CSA 60950-1
- IEC 60950-1
- EN 60950-1
- FCC Class A
- CB Certificate
- ICES-003
- EN 55024
- EN 55022/32
- CISPR 22/32
- VCCI
- EN 61000-3-2/3
- RoHS Compliant
- WEEE Declaration EU Directive
- IEC 62368-1
- EN 62368-1
- EN55035
Power
- Frequency: 50-60 Hz / Voltage: 100-240 VAC
- Two NEMA 5-15R 3-prong receptacles/appliance
- Country kits available for international orders
- EX10: 276W (2.30A @ 120VAC)
- EX18: 318W (2.65A @ 120VAC)
- EX27: 381W (3.18A @ 120VAC)
- EX36: 417W (3.48A @ 120VAC)
- EX52: 447W (3.73A @ 120VAC)
- EX84: 590W (4.92A @ 120VAC)
Temperature
- 10° to 35° C (50° to 95° F)
Humidity
- 20% to 80% non-condensing
Cooling (Operating)
- EX10: 941 BTU/hr
- EX18: 1084 BTU/hr
- EX27: 1299 BTU/hr
- EX36: 1422 BTU/hr
- EX52: 1524 BTU/hr
- EX84: 2012 BTU/hr
|
