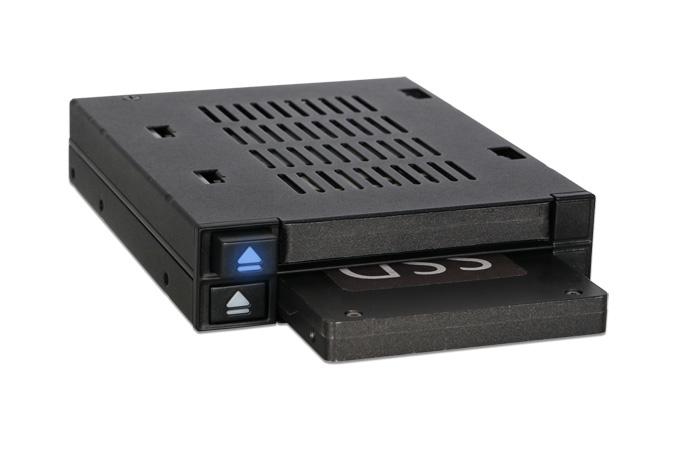

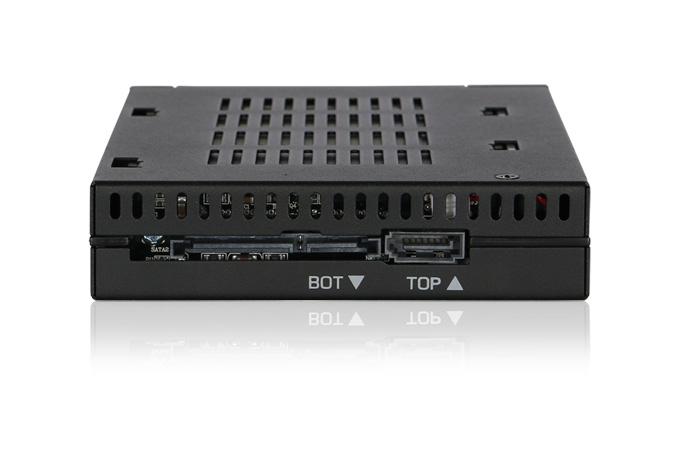

flexiDOCK MB522SP-B
MB522SP-B
Features:
- Supports docking up to 2 x 2.5 inch SAS / SATA HDD / SSD with hot-swap function (5mm – 9.5mm)
- Supports SATA 3.0 6Gbps or SAS 3.0 12Gbps (single channel)
- Fits any external 3.5” drive bay or floppy bay
- Full metal chassis with partial ABS-plastic for full protection

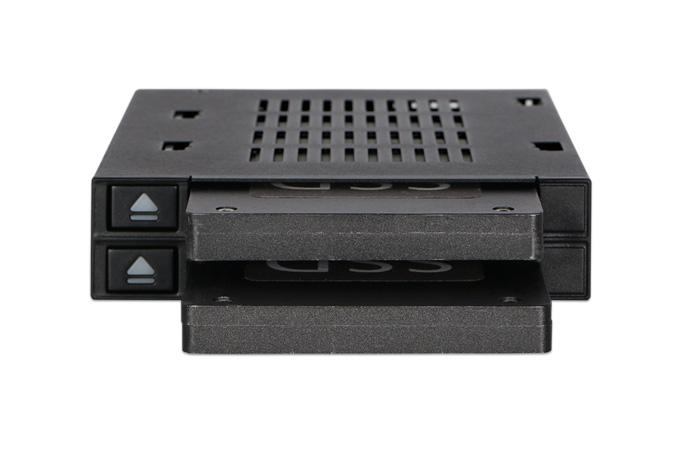

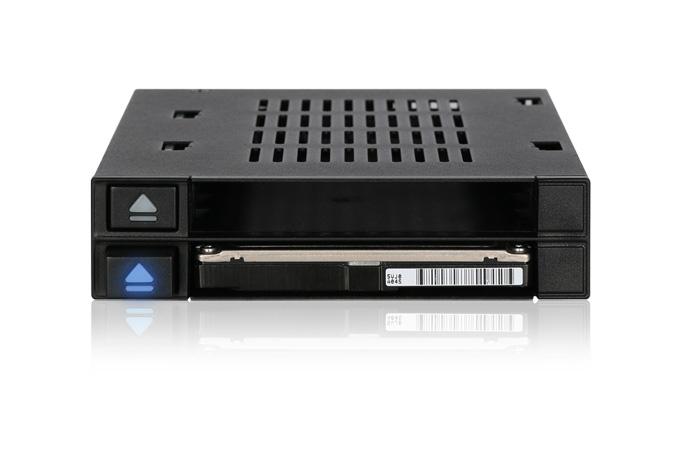

- Completely tray-less design and accepts bare drives without trays or holders
- Drive door-less design for quick hot-swapping
- Safety enhanced drive ejection button to prevent accidental drive ejection

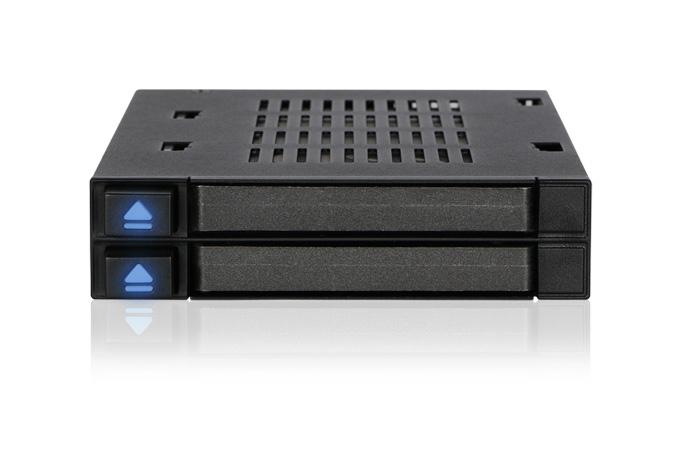

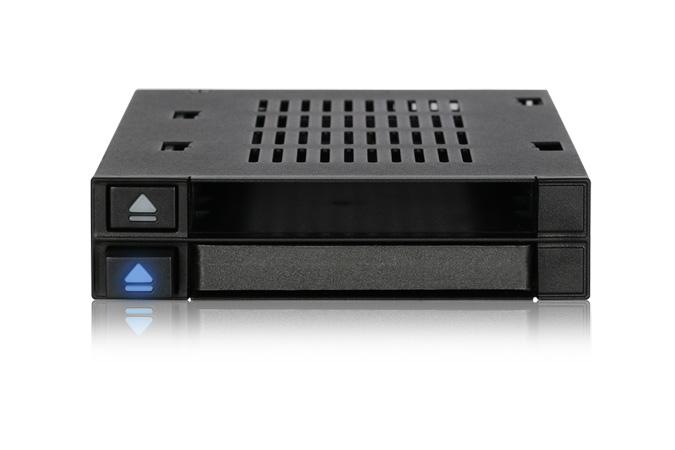

- Individual large drive eject buttons with SSD/ HDD activity indicator light built in
- Flush in design for full drive protection from possible environmental damage

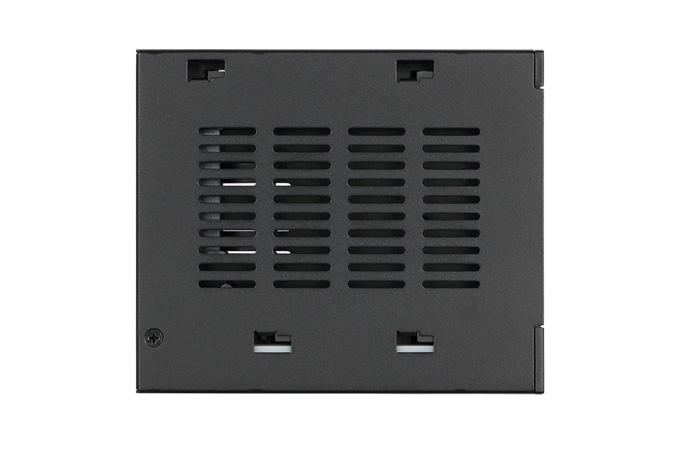

- Artistically designed ventilation slots for maximum passive cooling
- Active Power Technology (APT) powers up individual LED if only there is drive installed in the drive bay
- Backed with 3-year manufacturer warranty
- Ideal 2.5” SSD / HDD docking for system that requires easy hot-swap as mobile computers, data center rackmount computers and rackmount server systems, industrial automation control system, military computers and OEM / ODM systems
Specifications:
Model Number：
Color：
Support Drive Size：
Compatible Drive Type： - SATA / Single channel SAS (SAS host required)
Number of Drives：
Max Drive Height：
Drive Bay： - 1 x external 3.5" drive bay
Host Interface：
Power Input：
Transfer Rate： - SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps (single channel)
Support HDD Capacity：
Drive Cooling： - Metal heat dispersion with passive cooling
Structure / Material： - Metal with parital plastic
Support Hot-Swap：
Product Dimension (W x H x D)：
Product Net Weight：
Package Gross Weight：
Drive Activity LED Indication： - Drive power: solid blue; HDD access: flashing blue

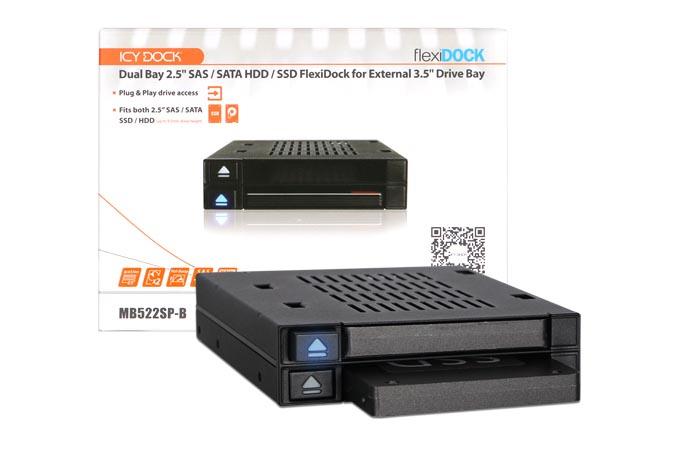

Package contents： - 1 - Device, 1 - user manual, 4 - screw
SATA Connector Insertion Rate：
Humidity：
Operating Temperature： - 0°C to 60°C (32°F to 140°F)
Storage Temperature： - -35°C to 70°C (-31°F to 158°F)
Compliance：
Warranty：
Lagring |
|---|
| Lagringsmedia typ | HDD,SSD | | Lagringsenhet gränssnitt | SATA | | Lagringsenhet som stöds | 2.5,3.5" | | Antalet lager som stöds enheter | 2 | Egenskaper |
|---|
| Maximal överföringshastighet | 6 Gbit/s | | Produktens färg | Svart | | Byte under drift (hotswap) | Ja | | Indikationer | Data, Energiljus | | Anslutning till PC | Ja | Vikt & dimension |
|---|
| Bredd | 101,6 mm | | Djup | 128,5 mm | | Höjd | 25,4 mm | | Vikt | 240,5 g | Övrigt |
|---|
| Standardgränssnitt | Serial Attached SCSI (SAS) | Förpackningens innehåll |
|---|
| Bruksanvisning | Ja |
|
