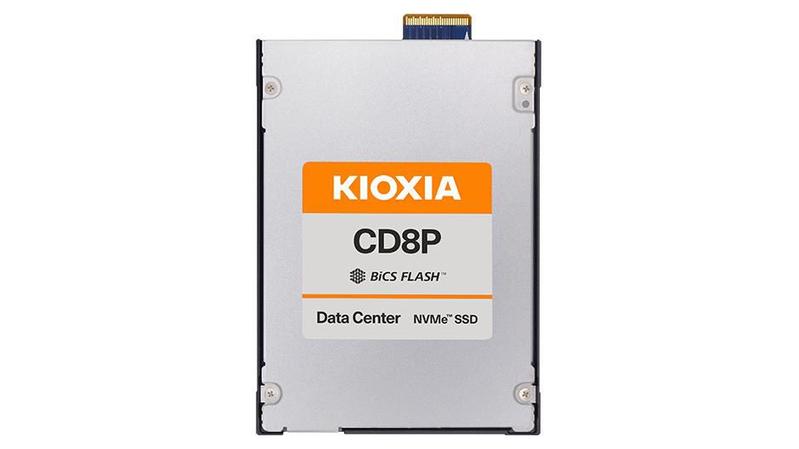

CD8P-V Series (E3.S) Data Center NVMe™ Mixed Use SSD 1.6TB SIE
KCD8XPJE1T60
Features:
- PCIe® 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: E3.S, 7.5 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Specifications:
Capacity
Basic
- Form Factor E3.S
- lnterface PCIe® 5.0, NVMe™ 2.0
- Maximum Interface Speed 128 GT/s (PCIe® Gen5 x4)
- Flash Memory Type BiCS FLASH™ TLC
Performance (Up to)
- Sustained 128 KiB Sequential Read 12,000 MB/s
- Sustained 128 KiB Sequential Write 3,500 MB/s
- Sustained 4 KiB Random Read 1,600K IOPS
- Sustained 4 KiB Random Write 300K IOPS
Power Requirements
- Supply Voltage 12 V ± 10 %, 3.3 V ± 15 %
- Power Consumption (Active) 18 W typ.
- Power Consumption (Ready) 5 W typ.
Reliability
- MTTF 2,500,000 hours
- Warranty 5 years
- DWPD 3
Dimensions
- Thickness 7.5 mm +0.2 / -0.5 mm
- Width 76 mm ± 0.25 mm
- Length 112.75 mm ± 0.4 mm
- Weight 110 g Max
Environmental
- Temperature (Operating) 0 °C to 76 °C
- Temperature (Non-operating) -40 °C to 85 °C
- Humidity (Operating) 5 % to 95 % R.H.
- Vibration (Operating) 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
- Shock (Operating) 9.8 km/s2 { 1,000 G } ( 0.5 ms )
|
