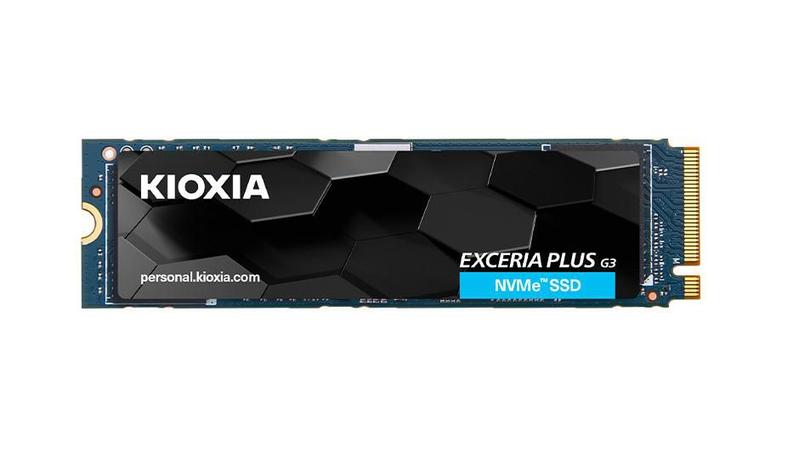

EXCERIA PLUS G3 NVMe™ SSD 2TB
LSD10Z002TG8
Features:
- BiCS FLASH™
- NVMe™ 1.4 Technology
- M.2 2280 Form Factor
- PCIe® Gen4 x4
- SSD Utility Management Software
Specifications:
Capacity / dimensions
- Capacity 2TB
- Form Factor M.2 Type 2280-S4-M
- Interface PCI Express® Base Specification Revision 4.0 (PCIe®)
- Flash Memory type BiCS FLASH™ TLC
- Interface Maximum Speed 64 GT/s (PCIe® Gen4x4)
- Dimension (Max: LxWxH) 80.15 x 22.15 x 2.63 mm
- Interface Command NVM Express™ Revision 1.4 command set
- Weight 7.4 g (typ.)
Performance
- Max Sequential Read Speed 5,000 MB/s
- Max Sequential Write Speed 3,900 MB/s
- Max Random Read Speed 680,000 IOPS
- Max Random Write Speed 950,000 IOPS
- Endurance: TBW 1,200 TB
- MTTF 1.5 million hours
Operating environment / protection performance
- Operating Temperature 0 ℃ (Ta) to 85 ℃ (Tc)
- Storage Temperature -40 ℃ to 85 ℃
- Certification RoHS compliant
- Shock Resistance 9.806 km/s {1,000 G} 0.5 ms half sine wave
- Vibration 196 m/s {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
- Supply Voltage 3.3 V ±5 %
- Power Consumption
- PS3: 50 mW (typ.)
- PS4: 5 mW (typ.)
- Power Consumption (Active) 5.3 W (typ.)
Compatibility
- PCI Express Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set
- Connector Type M.2 M key Socket
- Target Applications Client desktops and laptops
Others
- Services and Support Up to 5-year manufacturer's warranty
- Performance Optimization TRIM, Idle Time Garbage Collection. Host Memory Buffer
|
