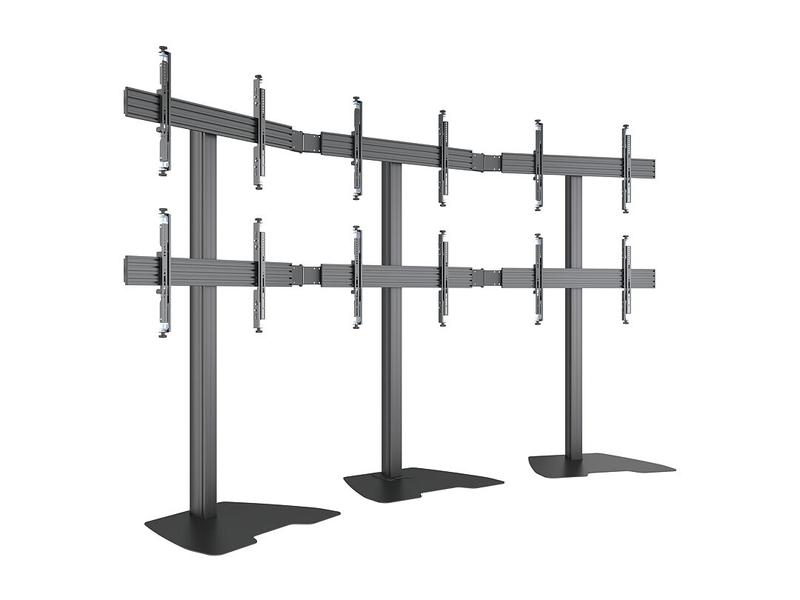

Multibrackets M Pro Series - Video Wall Floorbase MBFMC3X2U Micro Adjustable
7350022731073
M Pro Series - Video Wall Floorbase MBFMC3X2U Micro Adjustable - Floor column mount for triple displays, steel, single side, micro adjustable arms, VESA Max 600x400 - black
The M Pro Series - Video Wall Floorbase MBFMC3X2U Micro Adjustable is a floor-mounted video wall system designed for high-impact digital signage environments. It offers exceptional stability, modularity, and alignment precision for retail, public spaces, or commercial installations.
This modular video wall mount is built on the trusted Pro Series platform, offering unmatched flexibility with tool-free micro-adjustable VESA arms (X, Y, Z axis). Built-in cable management ensures a clean installation, while the bolt-down base delivers long-term structural integrity. The entire system is designed for quick deployment and effortless maintenance—ideal for dynamic professional environments.
With a sleek Scandinavian design aesthetic and robust steel and aluminum components, the MBFMC3X2U combines style with durability. It’s fully compatible with other Pro Series modules, allowing for future expansion or reconfiguration as display needs evolve.
Features:
- Micro-adjustable VESA arms for perfect X, Y, Z axis alignment
- Bolt-down floor base for permanent installations
- Tool-free assembly for faster setup and adjustments
- Modular design – scalable and reconfigurable
- Integrated cable management for clean aesthetics
- Power Click installation system for safety and speed
- Ideal for retail, control rooms, exhibitions, and digital signage
- Complete hardware kit included
Specifications:
M Pro Series - Video Wall Floorbase MBFMC3X2U Micro Adjustable
- For screen size: 43-65"
- VESA standard: 100x100 - 600x400 mm
- Article No: 7 350 022 731 073
- Colour: Black
- Screen weight: 30kg per screen
- Surface finish: Powder coating
- Weight: 20.3kg + 18.6kg + 18.6kg + 18.6kg + 16kg + 15kg + 13.2kg
- Size: 186.5x72x13.3cm + 83x63x11cm + 83x63x11cm + 83x63x11cm + 58.7x36.5x13.8cm + 72.5x21x13.8cm + 52.5x20.6x14.0cm
- Material: Steel, aluminum, plastic
- Tilt angle: +4 - -4 degrees
- Rotate: 0 degrees
- Swivel: 0 degrees
- Warranty: 5 years
Retail Package Specification
- Package Parcels: 7 pcs
- Package Measurements: 186.5x72x13.3cm + 83x63x11cm + 83x63x11cm + 83x63x11cm + 58.7x36.5x13.8cm + 72.5x21x13.8cm + 52.5x20.6x14.0cm
- Package Weight: 20.3kg + 18.6kg + 18.6kg + 18.6kg + 16kg + 15kg + 13.2kg
Ergonomi |
|---|
| Modell | Fast | | Typ av höjdjustering | Manuell | | Produktens färg | Svart | | Lutningsvinkel | -4 - 4° | | Material, hölje | Gjuten aluminium, Plast, Stål | | Förbättrad kabelhantering | Ja | | Lutningsjustering | Ja | Mounting |
|---|
| Maxvikt | 43 kg | | Maximal skärmstorlek | 165,1 cm (65") | | Monteringssätt | Golv | | Minsta skärmstorlek | 81,3 cm (32") | | Monteringsgränssnitt kompatibilitet (min) | 100 x 100 mm | | Monteringsgränssnitt kompatibilitet (max) | 600 x 400 mm | | Gränsssnitt för panelmontering | 100 x 100,600 x 400 mm | | Antal displayer som stöds | 6 | | Orientering | Horisontell / Vertikal | Vikt & dimension |
|---|
| Vikt | 112,4 kg | | Aluminiuminnehåll vikt | 13,8 kg | | Stål-innehåll vikt | 112,4 kg | | Övriga metaller innehåll vikt | 0 g | Förpackning |
|---|
| Vikt inkl. förpackning | 120,3 kg | | Antal per förpackning | 1 styck | Tekniska detaljer |
|---|
| Garantiperiod | 5 År | | Certifikat för överensstämmelse | TÜV mark | | Vikt papper-/kartongförpackning | 7,6 kg | | Metallförpackningens vikt | 0 g | | Plastförpackningens vikt | 300 g |
|
