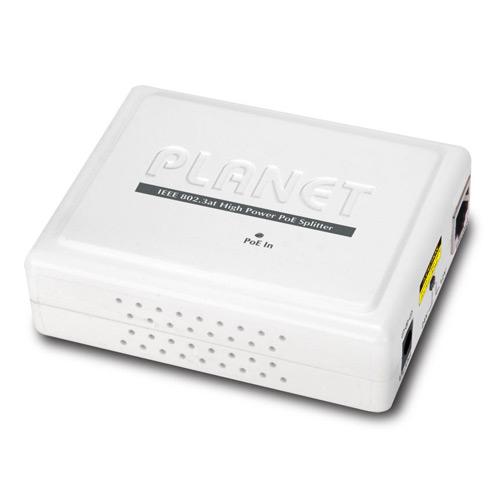

Planet POE-162S
Overview
Nowadays, PLANET has released next generation of Power over Ethernet Splitter product – POE-162S, compliant with brand-new IEEE 802.3at High Power over Ethernet standard that support 25.5 Watts for maximum input power of per device. The POE-162S provides the following key features:
% IEEE 802.3at Power over Ethernet Standard Compliant
% 12V / 24V DC Power Output Through DIP Switch
% Passive 10/100/1000Mbps Duplex Mode Support
% Quick and Easy High Power PoE Network Deployment
Key Features
Interface
• 2-Port RJ-45 interfaces
–1-Port PoE Power+ Data input
–1-Port Data output
• 1 DC output plug connector
PoE
• Complies with IEEE 802.3at Power over Ethernet PD
• Splits the 52 ~ 56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
• Up to 1 non-IEEE 802.3at device can be powered
• Auto-detect of PoE IEEE 802.3at equipment, protects devices from being damaged by incorrect installation
• Adjustable two different output voltage options (12V / 2A, 24V / 1A) to fit various devices
• Distance up to 100 meters
Hardware
• Plastic case
• 12V / 24V DIP switch
• LED indicators power input indication
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at Power over Ethernet standard
• FCC Part 15 Class A, CE
Prestanda |
|---|
| Kommunikationsstandarder | IEEE 802.1af,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u | | Kabelteknik | 10/100/1000Base-T(X) | Design |
|---|
| Produktens färg | Vit | | Indikationer | System | Anslutningar |
|---|
| RJ-45 ingångsportar | 1 | | RJ-45 utgångsportar | 1 | Strömtillförsel |
|---|
| Strömförsörjning via Ethernet (PoE) stöd | Ja | | DC-utgång volt | 12V,24V | Miljökrav |
|---|
| Temperatur vid drift | 0 - 50 ° C | | Temperaturintervall (förvaring) | -10 - 70 ° C | | Intervall för relativ operativ luftfuktighet | 5 - 95% | Vikt & dimension |
|---|
| Bredd | 95 mm | | Djup | 70 mm | | Höjd | 25 mm | | Vikt | 108 g | Förpackningens innehåll |
|---|
| Antal | 1 |
|
