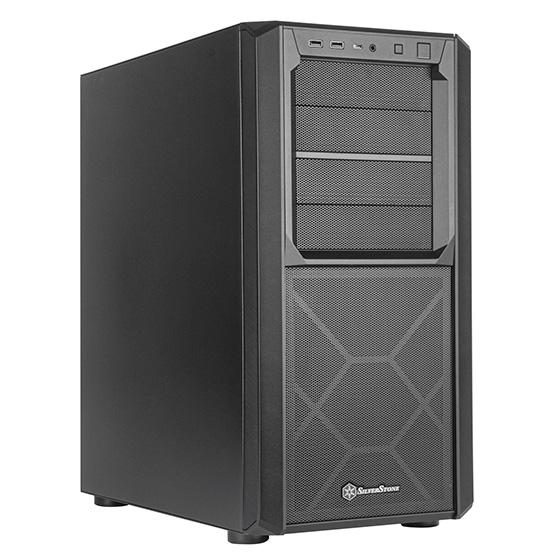

SETA D1
Minimalistic mid-tower ATX chassis with immense storage capability & versatility
SST-SED1-B
Features:
- Great durability chassis with solid steel construction
- Modular design to freely mix and match 5.25", 3.5" and 2.5" storage devices
- Extensive air and water cooling support
- Supports up to SSI-EEB motherboards
- I/O ports include USB Type-C x 1, USB 3.0 x 2 and combo audio x 1
Specifications:
Model No.
Material
Motherboard
- SSI-CEB, E-ATX, ATX (up to 12" x 10.4"), Micro-ATX, Mini-ITX
Drive bay
- External 5.25" x 4 (HDD combo bay supports up to 3)
- Internal 3.5" x 2, 2.5" x 2, 3.5" / 2.5" x 6
Cooling system
- Front 120mm x 3 / 140mm x 3 (140mm black fan x 2 included)
- Rear 120mm x 1 / 140mm x 1 (140mm black fan x 1 included)
- Top 120mm x 3 / 140mm x 2 / 160mm x 2
Radiator support
- Front 120mm / 140mm / 240mm / 280mm / 360mm
- Rear 120mm / 140mm
- Top 120mm / 140mm / 240mm / 280mm / 360mm
Limitation of CPU cooler
Expansion slot
Limitation of expansion card
- Length : 394mm (with front fans installed), 275mm (with front single bay drive cage and fans installed)
- Width : 188mm
Power supply
Limitation of PSU
Front I/O port
- USB Type-C x 1
- USB 3.0 x 2
- Combo audio x 1
Dimension
- 232mm (W) x 493.9mm (H) x 492.7mm (D), 56.46 liters
- 9.13" (W) x 19.44" (H) x 19.4" (D), 56.46 liters
Net weight
|
