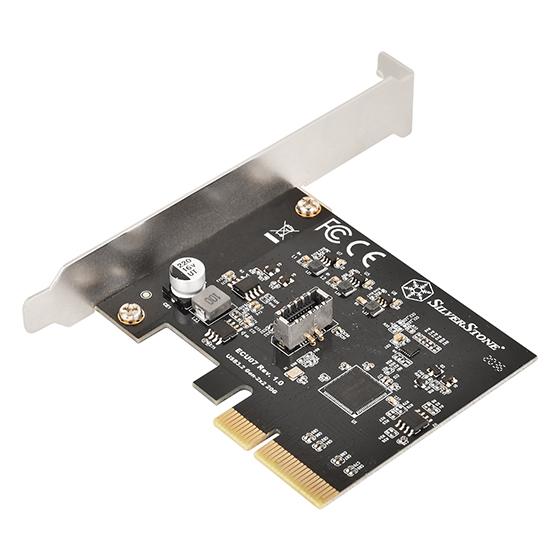

ECU07 SuperSpeed USB 20Gbps / internal USB-C Key-A 3.2 Gen 2x2 PCIe expansion card
SST-ECU07
Features:
- SuperSpeed USB 20Gbps
- Internal USB Type-C Key-A connector
- PCI Express Gen3 x4 lanes, transfer rate up to 32GT/s
- Compliant with PCI Express Base 3.1a specification.
- Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0
- Includes optional low profile slot cover for supporting low profile cases
Specifications:
Host interface
- Low profile – PCI Express Gen 3 x4 (32GT/s)
USB Ports
- Internal USB 3.2 Gen 2x2 Type-C Key-A connector
USB 3.2 controller
Transmitting Speed
- USB 3.2 Gen 2x2 (20Gbps), USB 3.2 Gen 2x1 (10Gbps), USB 3.2 Gen 1 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Power requirement
Power Management
- Support USB 3.2 and USB 2.0 link power management
Current protection
- Support over current detection
Operation Temperature
- Operating temperature range: 0 ~ 85 ºC
- Storage temperature range: -20 ~ +70 ºC
- Humidity range: 5 ~ 95% RH
Operating system support
- Windows 8-10, Windows Server 2016-2019, Mac10.X, Linux OS* in-box xHCI driver natively support UASP, no additional driver required
Dimension
- 123mm(W) x 21mm(H) x 105mm(D)
Net weight
Extra
- UASP and Multiple INs function
|
