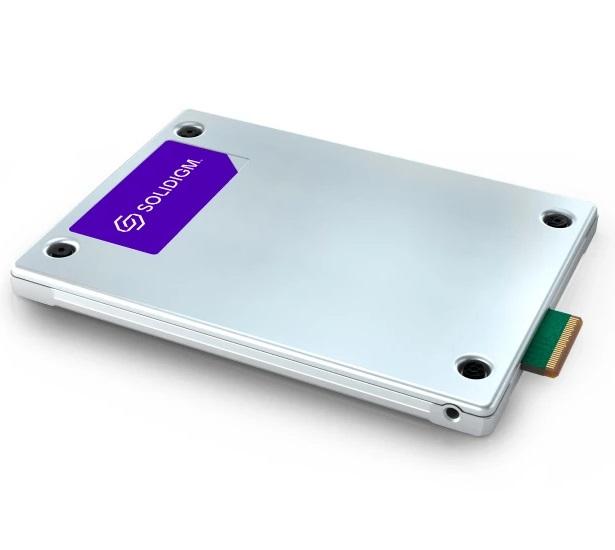

D5-P5430 Series 3.84 TB Generic No Opal
SBFPFABU038T001
Highly efficient, essential endurance PCIe 4.0 drives with capacities up to 15.36TB, designed for mainstream and read-intensive workloads.
Specifications:
General
- Capacity 3.84 TB
- Form Factor E3.S 7.5mm
- Interface PCIe 4.0 x4, NVMe
- Weight 90g +/-10g
- Lithography Type 192L QLC 3D NAND
- Use Conditions Server/Enterprise
Performance
- Sequential Bandwidth - 100% Read (up to) 5200 MB/s
- Sequential Bandwidth - 100% Write (up to) 900 MB/s
- Random Read (100% Span) 516000 IOPS (4K, QD256)
- Random Write (100% Span) 54500 IOPS (4K, QD256)
- Power - Active 13W
- Power - Idle 5W
Reliability
- Warranty Period 5 years
- Endurance Rating (Lifetime Writes) Up to 0.55 DWPD, 3.8 PBW
- Mean Time Between Failures (MTBF) 2 million hours
- Uncorrectable Bit Error Rate (UBER) <1 sector per 10^17 bits read
- Vibration - Operating 2.17 GRMS (5 - 700 Hz) Max
- Vibration - Non-Operating 3.13 GRMS (5 - 800 Hz) Max
- Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec
- Operating Temperature Range 0 - 70°C
|
