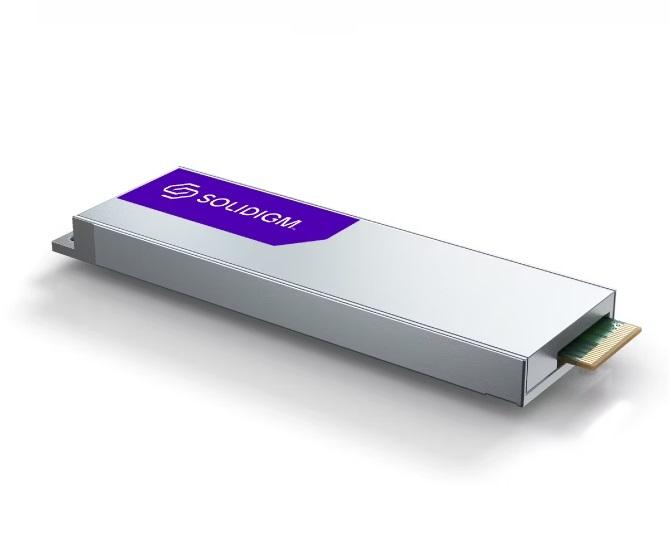

D5-P5430 Series (3.84 TB, E1.S 9.5mm PCIe 4.0 x4, 3D5, QLC) Generic No Opal
SBFPFUBU038T001
Highly efficient, essential endurance PCIe 4.0 drives with capacities up to 30.72TB, designed for mainstream and read-intensive workloads.
Specifications:
General
- Capacity 3.84 TB
- Form Factor E1.S 9.5mm
- Interface PCIe 4.0 x4, NVMe
- Weight 66 gms
- Lithography Type 3D5
- Use Conditions Server/Enterprise
Performance
- Sequential Bandwidth - 100% Read (up to) 5200 MB/s
- Sequential Bandwidth - 100% Write (up to) 900 MB/s
- Random Read (100% Span) 516000 IOPS (4K, QD256)
- Random Write (100% Span) 55000 IOPS (4K, QD256)
- Power - Active 12W
- Power - Idle 5W
- Latency - Random Read (typ.) 109μs
- Latency - Random Write (typ.) 24μs
- Latency - Sequential Read (typ.) 7μs
- Latency - Sequential Write (typ.) 8μs
Reliability
- Warranty Period 5 years
- Endurance Rating (Lifetime Writes) Up to 0.55 DWPD / Up to 3.85 PBW
- Mean Time Between Failures (MTBF) 2 million hours
- Uncorrectable Bit Error Rate (UBER) <1 sector per 10^17 bits read
- Vibration - Operating 2.17 GRMS (5 - 700 Hz) Max
- Vibration - Non-Operating 3.13 GRMS (5 - 800 Hz) Max
- Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec
- Operating Temperature Range 0 - 70°C
|
