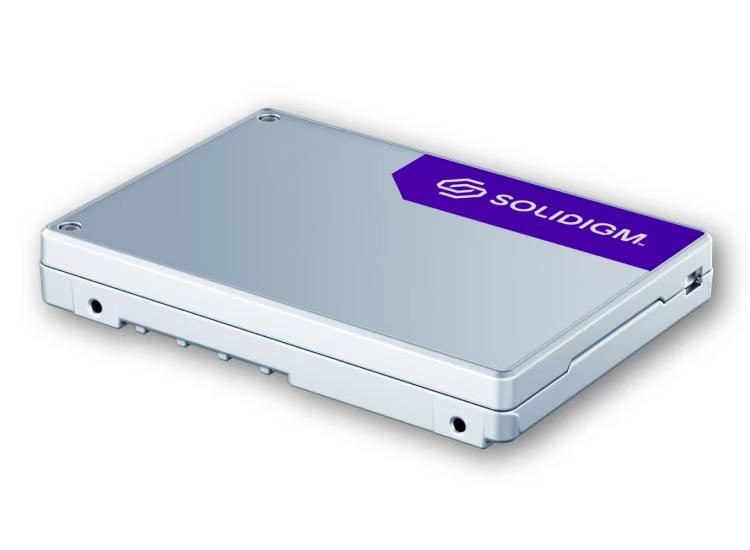

D7-P5620 Series (3.2TB, 2.5in PCIe 4.0 x4, 3D4, TLC) Generic No OPAL
SSDPF2KE032T11Z
Features:
- The Highest Performance for the Most Demanding Workloads
- At the top of our highest-performing SSD series, the Solidigm D7-P5620 is the industry’s most advanced PCIe product, performance-tuned for the real world. It’s designed with the highest endurance and tested with zero tolerance for data errors while delivering consistently durable performance.
- Accelerate Your Write-Intensive and Mixed Workloads
- For highly random, mixed-workload environments requiring low latency for improved user experience, the D7-P5620 delivers consistently amazing response time. For server-based storage solutions using virtualization software with random and sequential read/writes, it offers substantial random read IOPS and increases sequential write throughput.
- Deploy With Confidence
- Solidigm D7 Series drives are designed and tested with a passion for—and a relentless focus on—quality and reliability. Our data reliability is enhanced on multiple levels with PLI testing that simulates real-world conditions. Consistency is key, and this SSD provides up to 90% IOPS consistency and <0.3% IOPS variability over the life of the drive.
Specifications:
General
- Capacity 3.2 TB
- Form Factor U.2 15mm
- Interface PCIe 4.0 x4, NVMe
- Weight 165g +/- 5g
- Lithography Type 144L TLC 3D NAND
- Use Conditions Server/Enterprise
Performance
- Sequential Bandwidth - 100% Read (up to) 6700 MB/s
- Sequential Bandwidth - 100% Write (up to) 3600 MB/s
- Random Read (100% Span) 1000000 IOPS (4K Blocks)
- Random Write (100% Span) 341000 IOPS (4K Blocks)
- Power - Active 15W
- Power - Idle 5W
- Latency - Random Read (typ.) 75μs
- Latency - Random Write (typ.) 15μs
- Latency - Sequential Read (typ.) 10μs
- Latency - Sequential Write (typ.) 13μs
Reliability
- Warranty Period 5 yrs
- Endurance Rating (Lifetime Writes) 17.5 PBW
- Mean Time Between Failures (MTBF) 2 million hours
- Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
- Vibration - Operating 2.17 GRMS (5 - 700 Hz) Max
- Vibration - Non-Operating 3.13 GRMS (5 - 800 Hz) Max
- Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec
- Operating Temperature Range 0°C to 70°C
|
