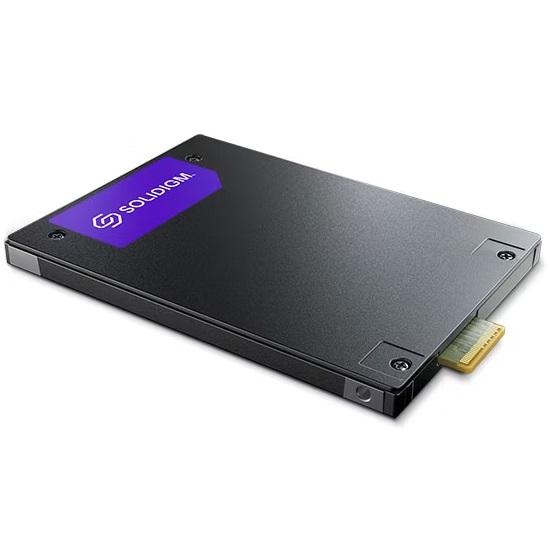

D7-PS1030 Series (1.6TB, E3.S 7.5mm PCIe 5.0 x4, V7, TLC) Generic No Opal
SB5PHA7E016T001
Features:
- Next-Gen Performance and Efficiency, Elevated for Mid-Endurance
- Combining class-leading performance and performance optimizations for real-world IO conditions, the Solidigm D7-PS1030 accelerates write-centric workloads such as OLTP, meta data logging, HPC, and more.
- PCIe 5.0 Performance Done Right
- With powerful PCIe 5.0 performance, Solidigm D7-PS1030 accelerates a wide range of write-centric and mixed workloads, from cloud and enterprise applications to modern AI/ML pipelines.
- Storage Optimized for the AI Era
- Artificial Intelligence is everywhere and it’s creating higher demands for data infrastructure efficiency and performance. The leading combination of high capacity and high-performance drives help Solidigm partners to save power and space. Step up your AI workloads with the Solidigm SSD portfolio optimized for the AI era.
- Fast and Flexible
- Experience the class-leading performance of Solidigm D7-PS1030, accelerating a broad range of write-centric workloads, on a PCIe 5.0 or PCIe 4.0 solution. Available in U.2 and E3.S form factors, these products enable both legacy and modern chassis designs to realize their fullest potential.
Specifications:
General
- Capacity 1.6 TB
- Form Factor E3.S 7.5mm
- Interface PCIe 5.0 x4, NVMe
- Weight 110g +/- 10g
- Lithography Type 176L TLC 3D NAND
- Use Conditions Server/Enterprise
Performance
- Sequential Bandwidth - 100% Read (up to) 14500 MB/s
- Sequential Bandwidth - 100% Write (up to) 4100 MB/s
- Random Read (100% Span) 2350000 IOPS (4K Blocks)
- Random Write (100% Span) 350000 IOPS (4K Blocks)
- Power - Active 17W
- Power - Idle 5W
- Latency - Random Read (typ.) 60μs
- Latency - Random Write (typ.) 8μs
- Latency - Sequential Read (typ.) 60μs
- Latency - Sequential Write (typ.) 7μs
Reliability
- Warranty Period 5 yrs
- Endurance Rating (Lifetime Writes) 3 DWPD / 8.7 PBW
- Mean Time Between Failures (MTBF) 2.5 million hours
- Uncorrectable Bit Error Rate (UBER) 1 sector per 10^18 bits read
- Vibration - Operating 2.17 GRMS (5 - 700 Hz) Max
- Vibration - Non-Operating 3.13 GRMS (5 - 800 Hz) Max
- Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec
- Operating Temperature Range 0°C to 77°C
|
