- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
- Extends fiber distance up to 20Ј60km

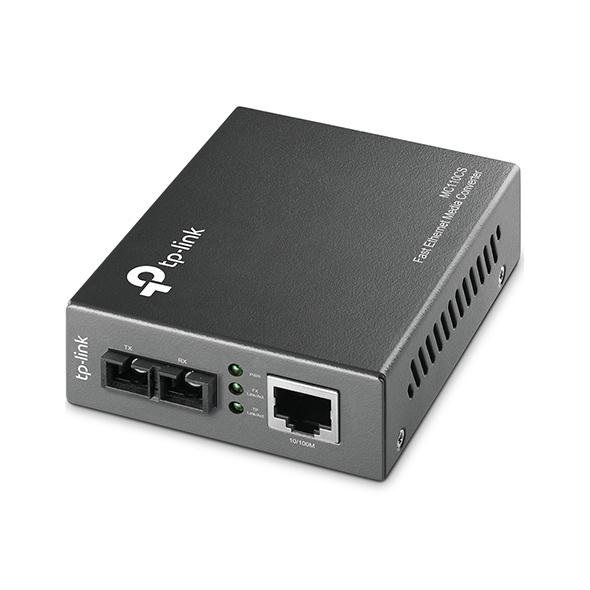

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKЎЇs 19ЎЇЎЇ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Nätverk |
|---|
| Maximal dataöverföringshastighet | 100 Mbit/s | | Kommunikationsstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | | Datahastighet för Ethernet-LAN | 10,100 Mbit/s | | Koppar Ethernet-kablar teknik | 10BASE-T, 100BASE-FX, 100BASE-T | | Auto MDI / MDI-X | Ja | | Duplex systemet | Fullständig, Halv | | Kabeltyper som stöds | Cat3, Cat4, Cat5 | Prestanda |
|---|
| Maximal överföringshastighet avstånd | 12500 m | | Våglängd | 1310 nm | | Fiberlägets struktur | Enkelläge | Egenskaper |
|---|
| Intern | Nej | | LED-indikatorer | Ja | | Produktens färg | Svart | Anslutningar |
|---|
| Anslutningsteknologi | Kabel | | Antal LAN (RJ-45) anslutningar | 1 | | Fiberportar kvantitet | 1 | | Fiberoptiska kontakten | SC | Strömtillförsel |
|---|
| Strömförbrukning (max) | 2,4 W | Vikt & dimension |
|---|
| Bredd | 95 mm | | Djup | 73 mm | | Höjd | 27 mm | Miljökrav |
|---|
| Temperatur vid drift | 0 - 40 ° C | | Temperaturintervall (förvaring) | -40 - 70 ° C | | Intervall för relativ operativ luftfuktighet | 10 - 90% | | Fuktighet (förvaring) | 5 - 90% | Certifikat |
|---|
| Certifikat för överensstämmelse | RoHS | Logistikdata |
|---|
| Harmonized System (HS)-kod | 85176990 |
|
